Coating Equipment

An all-in-one lightweight vacuum coating machine integrating coating, plasma cleaning, and precision dry etching. Through PECVD process, it can form an extremely thin hydrophobic coating on the surface of electronic products (with film thickness generally 10-100nm).

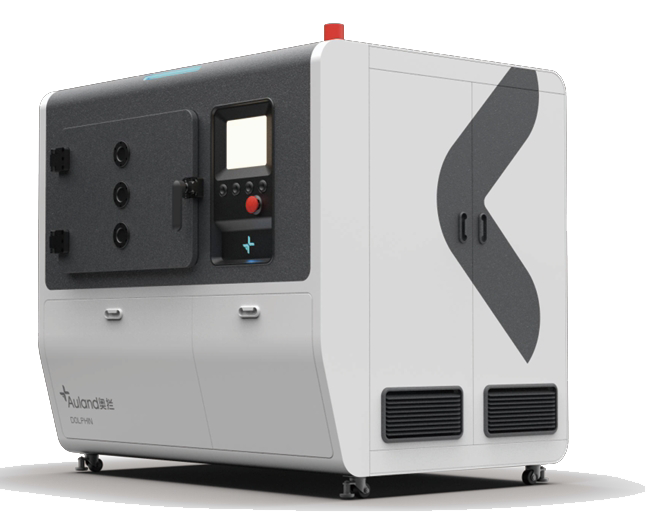

Dolphin Coating Machine

Dolphin is a plasma-enhanced chemical deposition (PECVD) vacuum coater with mass production capability. It forms a strong hydrophobic and oleophobic nano-coating on the surface of electronic products, and features both water resistance and salt spray resistance to certain extent.

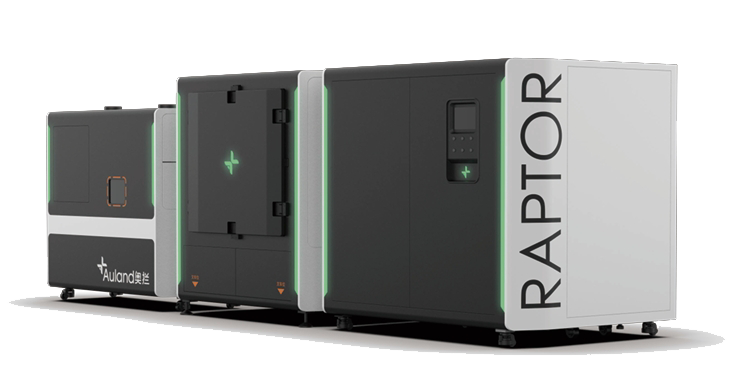

Raptor Coating Machine

Raptor is a parylene vacuum coating machine with mass production capability. It meets the requirements of electronic products for water resistance (IP68) and salt spray & corrosion resistance.

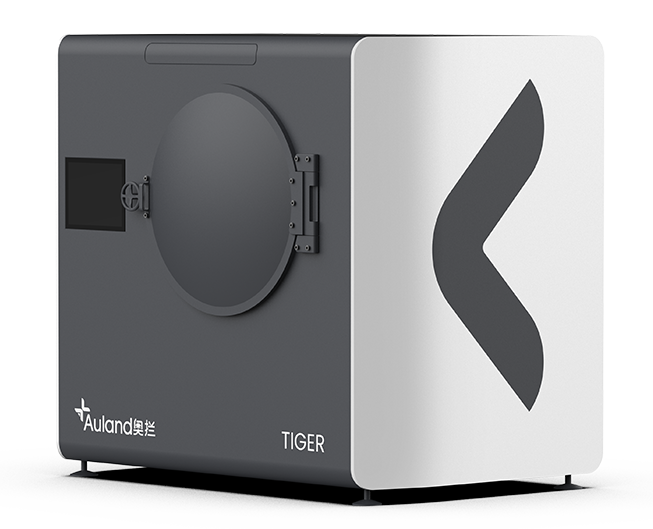

Tiger Coating Machine

Tiger is an ALD coater where film growth progresses layer by layer at the atomic level. This technology ensures high conformality of the films while also enabling precise control of the film thickness at the atomic scale through continuous surface reaction.

Solution

NFO

Water resistant Solutions Based on PECVD Vacuum Deposition Process

eNFO

Deposition technique:
Spraying in atmospheric environments followed by vacuum plasma deposition

PGO

Deposition technique:
chemical vapor deposition (CVD) at room temperature

Peculiarity:

Hydrophobic and oleophobicity

Water resistance up to IPX7

Uniform film thickness (nanoscale) with complete coverage of the coated product

NFO does not affect heat dissipation or add weight to products.

No post curing needed ,green process

Rework/repair friendly

Main application:

Wireless headsets

Smartphones

Automotive electronics

Outdoor video surveillance devices

Robotic vacuum cleaners

LED displays (indoor)

Peculiarity:

Double-layer or multi-layer membrane

Hydrophobic and oleophobicity

Waterproof IPX8

Resistance to corrosions of salt spray, acid, alkali, tobacco tar, etc.

Simple mask-demask

Main application:

Wireless headsets

Automotive electronics

Smartphones

LED displays (indoor)

Industrial control board

Peculiarity:

Uniform film thickness, complete conformal coating with the substrate

Water resistance up to IPX8

Water resistance, and resistance to corrosions of salt spray, haze, and various liquids

UV stable,high temperature stable, up to 150°C

No post curing needed ,green process

No affecting heat dissipation or adding weight to products

Repairable

Main application:

Wireless headsets

Motor stators

Industrial drones

Automotive electronics

Medical devices

LED displays (outdoor)

Technical Support

After-sales Services

Development of New Materials and Processes

Testing and Certification

After-sales Services

Material research and
development

We provide 24/7 technical support and services.

The equipment comes with a remote service system, and technical support is provided online 24 hours for software failures.

For any problems encountered during the production process, the professional team of Auland will provide online or on-site technical support at any time.

Development of New Materials and Processes

Material research and
development

Auland Technology has a high-quality innovation team,including doctors returned from prestigious American universities and multiple young engineers with rich industrial experience, covering fields such as materials, mechanics, electrical control, processes, and testing. Auland is committed to developing customer-and-market-oriented solutions according to customer needs.

Testing and Certification

Material research and
development

Auland Technology possesses a complete set of testing equipment for waterproofing, salt spray, UV aging, etc. It also has advanced imported foreign instruments, including MOCON's water vapor permeability tester, JA Woollam's ellipsometer, and Filmetrics' coating thickness tester.

About Us

Established in 2017, Shenzhen Auland Technology Co., Ltd. (referred to as “Auland Technology”) is headquartered in Shenzhen. It is a Sino-foreign high-tech joint venture founded by a team of doctors returned from prestigious American universities with 20 years of experience in the industry. The founding team held key positions in high-tech companies such as Silicon Valley and Fortune 500 companies. During their tenure, they developed waterproof nano-coating technology, which have been successfully applied to the products such as Apple’s AirPods and Amazon’s Kindle.
